Radiant Heaters

radiant heaters

Type GAD Single Element, Completely Assembled

Applications:

Type GAD Radiant Heaters are suitable for drying, baking, curing, sterilizing, and many other applications requiring contact-free heating. Long wave length is suitable for most colors.


Standard Features:
Rigid extruded aluminum housing, highly polished reflector, alloy sheathed tubular heater element, mounting clamps.


Accessories:
Type HTW High Temperature Wire and type RH High Temperature Terminal Connectors must be ordered separately.

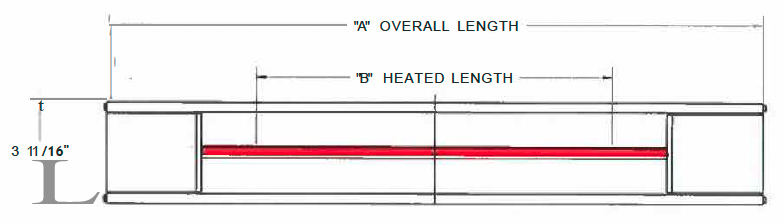

radiant heater

GAD Single Elements

Dimension (Inches)

Volts

kW

Net Weight

Catalog No.

Replacement Element

A

B

24.375

16.5

120

800

4

GAD-801

AD-801

240

800

4

GAD-802

AD-802

30.625

22.75

120

1100

5

GAD-1101

AD-1101

240

1100

5

GAD-1102

AD-1102

35.875

28.3125

240

1300

7

GAD-1302

AD-1302

480

1300

7

GAD-1304

AD-1304

46.625

38.5

240

1800

8

GAD-1802

AD-1802

480

1800

8

GAD-1804

AD-1804

61.375

53.375

240

2500

10

GAD-2502

AD-2502

480

2500

10

GAD-2504

AD-2504

73.75

65.75

240

3000

12

GAD-3002

AD-3002

480

3000

12

GAD-3004

AD-3004

85.75

78

240

3600

14

GAD-3602

AD-3602

480

3600

14

GAD-3604

AD-3604

Type GADD Double Element

Applications:

Type GADD Radiant Heaters provide double the heat capacity of the Type GAD Radiant Healers. They are suitable for drying, baking, and olher applications requiring fast contact free heating.


Standard Features:

Rigid extruded aluminum housing, highly polished reflector, alloy sheathed tubular healer element, mounting clamps.



Note:

Most installations of Type GADD fixtures are simplified by wiring one end of the fixture only. This is standard feature on those models with an " S " suffix.

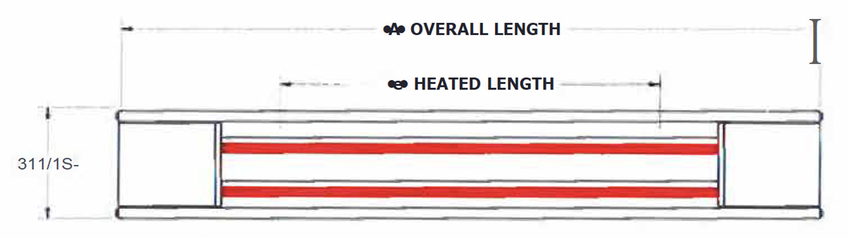

GADD Double Element

GADD Double Elements

Dimension (Inches)

Volts

kW

Net Weight

Catalog No.

Replacement Element

A

B

24.375

16.5

120

1600

7

GADD-1601

AD-801

240

1600

7

GADD-1602

AD-802

30.625

22.75

120

2200

9

GADD-2201

AD-1101

240

2200

9

GADD-2202

AD-1102

35.875

28.3125

240

2600

10

GADD-2602

AD-1302

480

2600

10

GADD-2604

AD-1304

46.625

38.5

240

3600

11

GADD-3602

AD-1802

480

3600

11

GADD-3604

AD-1804

61.375

53.375

240

5000

14

GADD-5002

AD-2502

480

5000

14

GADD-5004

AD-2504

73.75

65.75

240

6000

16

GADD-6002

AD-3002

480

6000

16

GADD-6004

AD-3004

85.75

78

240

7200

18

GADD-7202

AD-3602

480

7200

18

GADD-7204

AD-3604

114.125

106

240

8000

34

GADD-8002

AD-4002

480

8000

34

GADD-8004

AD-4004

Type U-GAD, Single Element, Double Intensity

Applications:

Type U-GAD Radiant Heaters provide high heat capacity and are especially suitable when space is limited at one end of the radiant fixture assembly. They are suitable for drying, baking, curing, sterilizing, and many other applications requiring contact-free heating. Long wave length is suitable for most colors.


Standard Features:

Rigid extruded aluminum housing, highly polished reflector, alloy sheathed tubular heater element, mounting clamps.


Accessories:

Use of Type HTW High Temperature Wire and Type RH High Temperature Ring Terminals is recommended and can be ordered as a separate item. Additional reflector sheets of virtually any width are available for placement between fixtures.

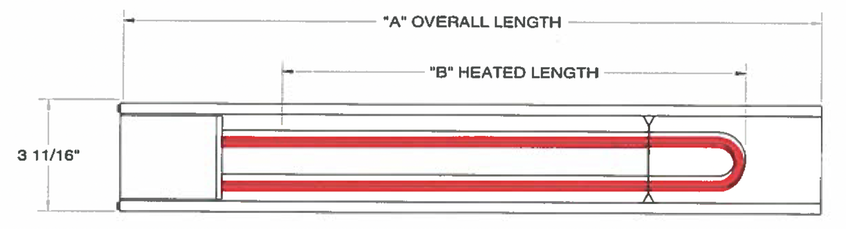

Type U GAD, Single Element

U-GAD Single Elements

Dimension (Inches)

Volts

kW

Net Weight

Catalog No.

Replacement Element

A

B

12.75

8.4375

120

800

4

U-GAD-801

UAD-801

240

800

4

U-GAD-802

UAD-802

15.875

11.3125

120

1100

5

U-GAD-1101

UAD-1101

240

1100

5

U-GAD-1102

UAD-1102

18.375

13.8125

240

1300

6

U-GAD-1302

UAD-1302

480

1300

6

U-GAD-1304

UAD-1304

23.8125

19.375

240

1800

7

U-GAD-1802

UAD-1802

480

1800

7

U-GAD-1804

UAD-1804

31.25

26.8125

240

2500

8

U-GAD-2502

UAD-2502

480

2500

8

U-GAD-2504

UAD-2504

37.25

32.8125

240

3000

10

U-GAD-3002

UAD-3002

480

3000

10

U-GAD-3004

UAD-3004

43.375

38.375

240

3600

12

U-GAD-3602

UAD-3602

480

3600

12

U-GAD-3604

UAD-3604

Type U-GAD-LT, Single Element, Double Intensity

Applications:

Type U-GAD-LT Radiant Heaters are suitable for applications exposed to the weather as well as those processes requiring periodic "wash down". They are commonly used as "spot heaters" for pumps, motors, and other equipment subject to damage in cold environments.


Standard Features:

Cast terminal enclosure with gasket, rigid extruded aluminum housing, highly polished refleclor alloy sheathed tubular heater element, mounting clamps.


Accessories:

Use of Type HTW High Temperature Wire and Type RH High Temperature Ring Terminals is recommended and can be ordered as a separate item. Additional reflector sheets of virtually any width are available for placement between fixtures.


Type U GAD, Single Element

U-GAD LT Single Elements

Dimension (Inches)

Volts

kW

Net Weight

Catalog No.

Replacement Element

A

B

12.75

8.4375

120

800

4

U-GAD-801LT

UAD-801

240

800

4

U-GAD-802LT

UAD-802

15.875

11.3125

120

1100

5

U-GAD-1101LT

UAD-1101

240

1100

5

U-GAD-1102LT

UAD-1102

18.375

13.8125

240

1300

6

U-GAD-1302LT

UAD-1302

480

1300

6

U-GAD-1304LT

UAD-1304

23.8125

19.375

240

1800

7

U-GAD-1802LT

UAD-1802

480

1800

7

U-GAD-1804LT

UAD-1804

31.25

26.8125

240

2500

8

U-GAD-2502LT

UAD-2502

480

2500

8

U-GAD-2504LT

UAD-2504

37.25

32.8125

240

3000

10

U-GAD-3002LT

UAD-3002

480

3000

10

U-GAD-3004LT

UAD-3004

43.375

38.375

240

3600

12

U-GAD-3602LT

UAD-3602

480

3600

12

U-GAD-3604LT

UAD-3604
