Fuel Gas Scrubber

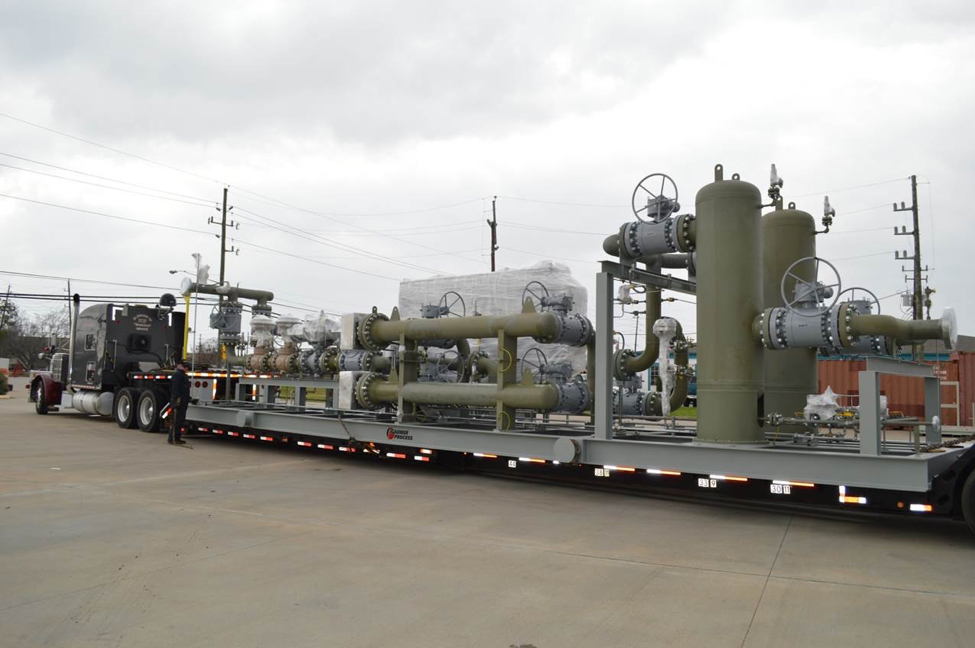

  • Fuel Gas Scrubber on truck bed
  • spec guel gas scrubber

FUEL GAS SCRUBBER

Gaumer Process provides standard fuel gas scrubber(in accordance with Gaumer standard specifications) and custom engineered (in accordance with customer specifications), utilizing mesh pad or vane pack or cyclone.



Fuel Gas Scrubber or Knock-out (KO) drum or mist eliminators are used to remove the entrained liquid droplets and slugs from vapor stream. It assists in removing free liquids present with incoming gas and helps prevent overloading of downstream final filter elements. Bigger droplets are primarily collected by means of inertial impaction whereby the target is directly in path of streamline.

Features

Mesh pad, Vane pack, or multi Cyclone

PLC control system (optional)

Vertical or horizontal design

Ladder and platform per OSHA requirements (optional)

Skid mounted, trailer mounted or standalone

Quick availability based on pre-engineered design or custom engineered per equipment specifications

ASME coded pressure vessel with relief valves

Complete process and mechanical guarantees

Manual or automatic liquid drains

Training and start-up/site commissioning assistance

Level indication – local and remote

Global certifications available such as PED, IECEx, ATEX, NR-13, etc.

Applications

Power Generation - Traditional power plant or mobile power generation unit

Upstream, midstream and downstream

Petrochemical
