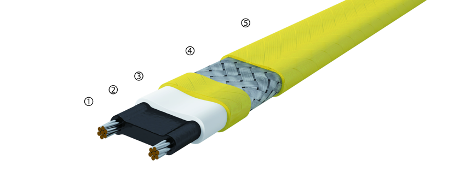

The GHU Self-Regulating Heating Cables are designed for freeze protection and temperature maintenance of metal pipes. The GHU cables are rated 250°F(120oC) Maximum Maintain and 392°F (200oF) Maximum Exposure, operating voltages 100 to120 V or 208 to 277 V and nominal power outputs 5, 10, 15, 20 W/Ft. The outer jacket of the GHU heating cable has high chemical resistance and therefore can be used in areas where organic chemicals or corrosives may be present. Since the GHU cables are rated T3, it is superior to other brands of medium-temperature self-regulating heating cables rated 230°F(110oC) Maximum Maintain and 275°F(135oC). When used with the GB Series connection accessories, the GHU heat tracing system is suitable for Ordinary and Div. 2 Hazardous Locations approved by FM for US and Canada and certified with ATEX and IECEx for the rest of the world.
Links:
System Installation
Third-Party Certification (pending)
