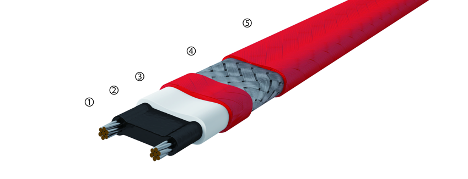

GHK High-Temperature Self Regulating Heating Cables

The GHK Self-Regulating Heating Cables are designed for freeze protection and temperature maintenance of metal pipes. The GHK cables are rated 300°F(150oC) Maximum Maintain and 482°F (250oF) Maximum Exposure, operating voltages 100 to120 V or 208 to 277 V and nominal power outputs 5, 10, 15, 20 W/Ft. The outer jacket of GHK heating cable has high chemical resistance and therefore can be used in areas where organic chemicals or corrosives may be present. When used with the GB Series connection accessories, the GHU heat tracing system is suitable for Ordinary and Div. 2 Hazardous Locations approved by FM for US and Canada and certified with ATEX and IECEx for the rest of the world.

Links:

GHK Datasheet Pdf, 6.1 MB.

System Installation

Third-Party Certification (pending)
